Sunnen mandrel for open hole blind hole with retainer and stone
1. Introduce of honing
We need below details to recommend tools for you
Honing Machine name &type: Horizontal or vertical(we want to
know the Connection type of Hone Head, and the Feed type of Honing
Stones )?
workpiece name:
Workpiece material:
Workpiece hardness:
Bore type: open, blind,and keyways or splines holes?
Bore size: diameters and length?
Stock removal amount(or Start bore diameter?:
Finish bore diameter?:):
Required surface finish Ra:
Ra is the most widely used description of a surface. If you could
level all the peaks to fill in all the valleys you would have a
mean line. The arithmetic average of the deviations up and down
from this theoretical mean line is Ra.
We are able to supply abrasives, honing tools for Nagel, Gehring,
Sunnen, Nissin, Kadia, Mas, Delapena and many other machines.
2.Feature of different material manderls
| CS Mandrels | steel mandrels with soft shoes, for honing most materials |
| CH mandrels | Steel mandrel with hardened shoes, for production honing or hard,
rough parts, carbide, ceramics, glass. |
| CB/AB Bronze mandrel | Bronze mandrel for producing very fine finishes and for honing
exotic metals. |
| Diamond plated super mandrels | designed to provide a long wearing guide shoe to increase mandrel
life. |
3.Series of mandrel:
| K series | - K3, K4, K5, K6, K8, K10, K12, K16, K20
|
| L series | - L6, L8, L10, L12, L16, L20
|
| BL series | - BL3, BL4, BL5, BL6, BL8, BL10, BL12, BL16, BL20
|
4. Our line of business
- Diamond and CBN Honing Stones, Honing Tools
- Honing tools for cylinder liner & blocks honing;
- Fuel injection parts honing;
- Connecting rod honing;
- Gears honing;
- Engines, hydraulic parts honing.

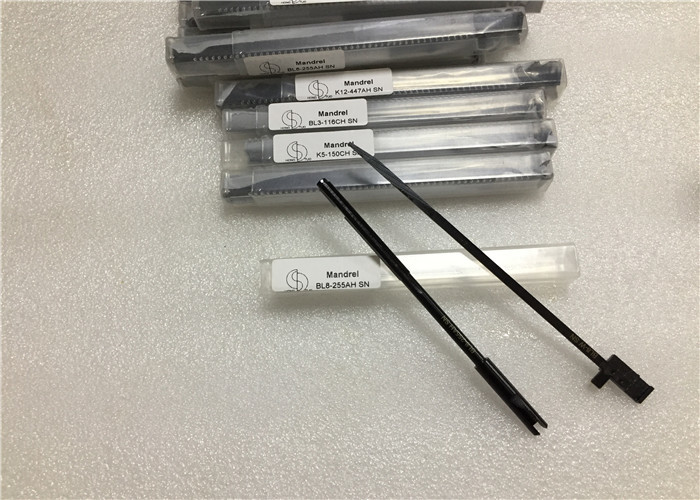

5.Our detailed mandrel pictures:
6.Plastic box used for packing mandrel
7.Our warehouse pictures
8. Our factory
If you would like samples of our products for trials and
inspection, please call or email us. I know you will be pleased
with our response.
HONING CONDITION SOLUTIONS
Poor stone life
1, Decrease cutting pressure
2, use faster spindle speed
3, use harder stone (one with higher hardness number)
4, use coarser grit stone ( one with lower grit number)
5, increase lubricity of honing fluid.
9.Our inspection equipment
